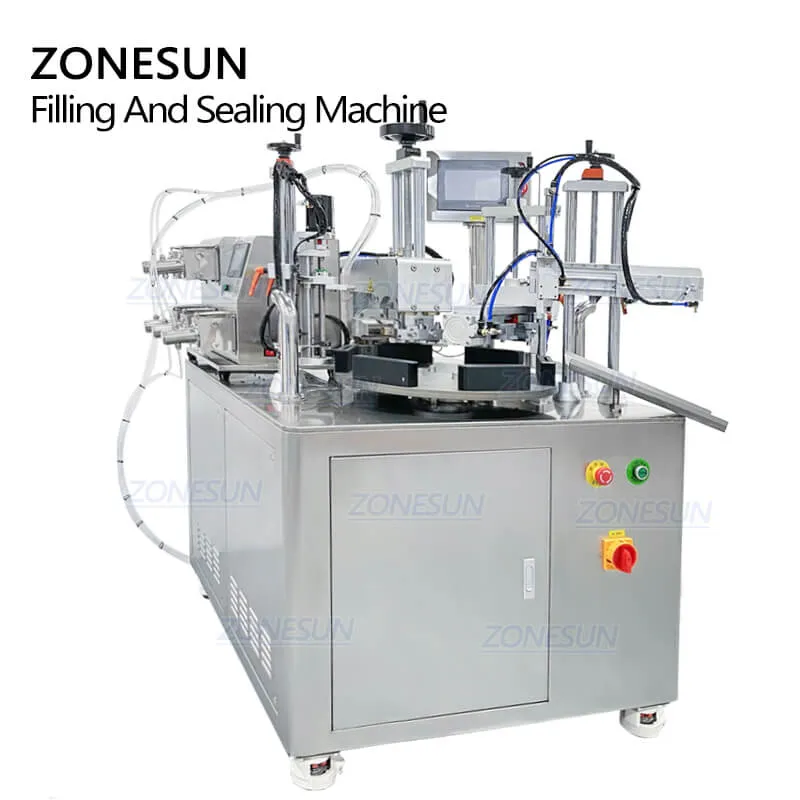

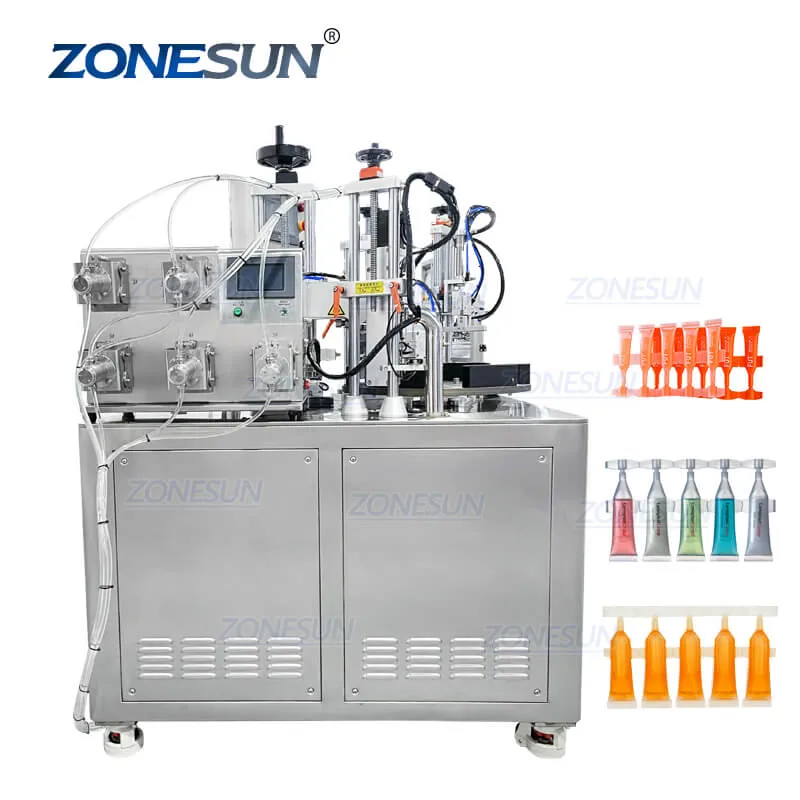

This automatic machine is with function of filling and sealing,multifunctional and help you save working space.It is equipped with ceramic pump,which can fill liquid accurately.The fixing mold can be customized according to product size.This machine is widely used in cosmetics,daily chemical industries.

Parameter

• Machine model:ZS-FS50U
• Power supply:220v50Hz/60Hz
• Power:2.6KW
• Air pressure:0.6Mpa
• Sealing speed:10-13 rows/minute
• Filling accuracy:±0.05g
• Sealing height:50~200mm
• Frequency:20KHz
• Sealing diameter:50-140mm
• Body material:304 stainless steel
• Ultrasonic electric box:20K 2600W digital automatic frequency tracking electric box
• Machine size:L1300*W1010*H1550mm
• Machine weight:350kgs

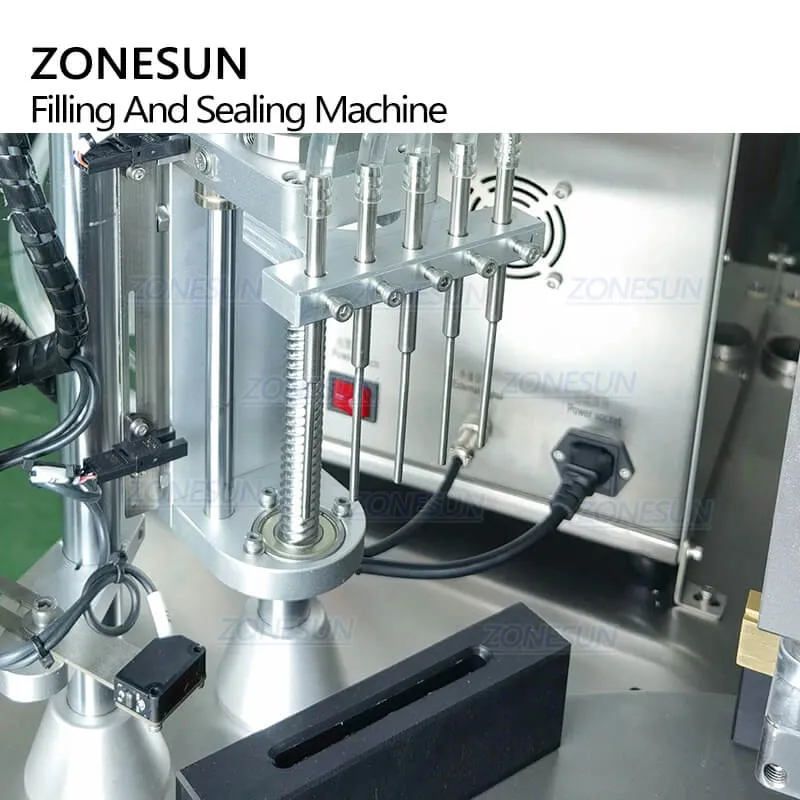

This machine is designed with ceramic pump,it can fill liquid accurately.The small filling nozzle can prevent from spreading out liquid during working,improve filling accuracy.

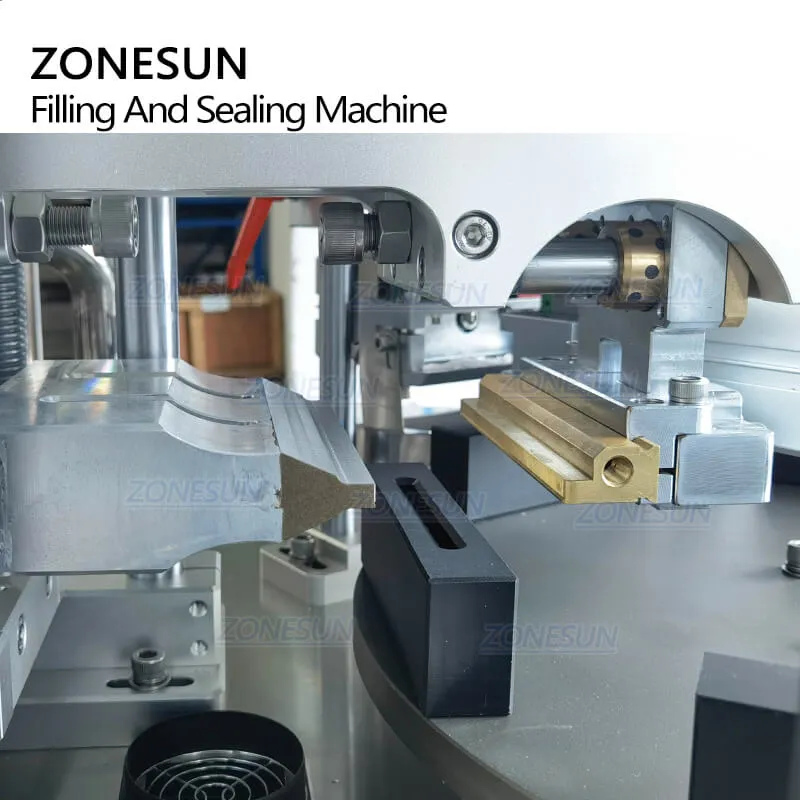

The machine is equipped with high quality electric eye,which can detect soft tube and control the machine to seal and trim soft tube.Reduce production error

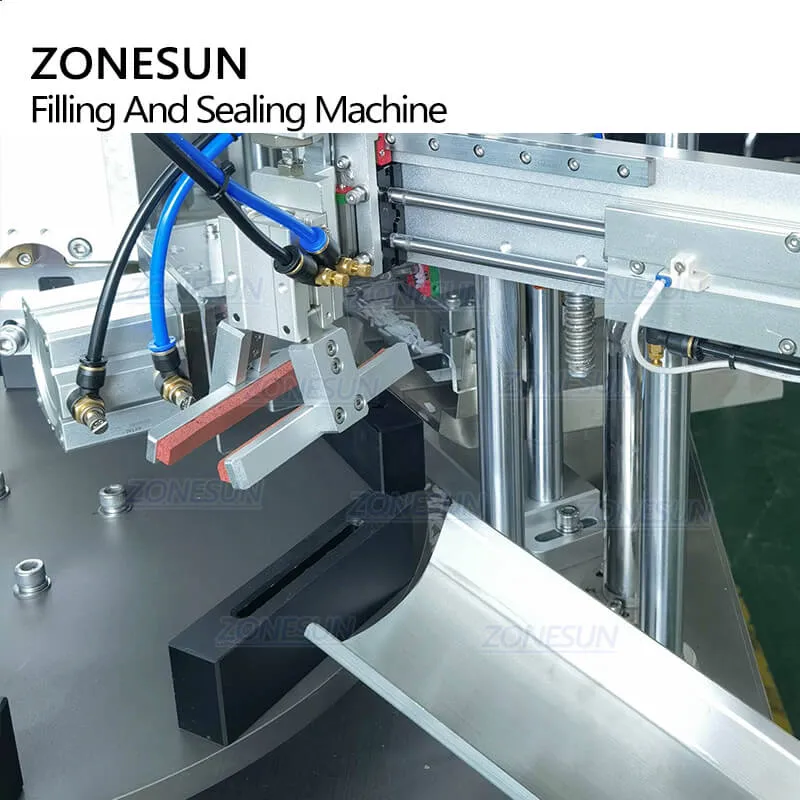

The fixing mold can be customized according to material size.This machine is also with clamping function which can clamp finished products after producing.
